Category 6 U/UTP 4 Pair 24AWG Cable with Separator
 |
Norden Category 6 U/UTP cables exceed Category 6/Class E specification. It is tested to 250MHz frequency range and designed to support Gigabit 1000Base-T and 1000Base-Tx applications to full 100m. Norden Category 6 U/UTP cables are UL listed CM, CMX, CMR & CMP and standard packing will be 305m easy pull out boxes.
Extremely high pair-balance providing excellent EMC (Electro Magnetic Compatibility), minimizing radiation, maximizing noise immunity and providing high alien cross talk performance to U/UTP (Unshielded Twisted Pair) cabling systems.
|
COMPLIANCE
IEEE 802.af ,IEEE 802.3at for PoE applications
ANSI/TIA-568-C.2:2009 Category 6
ISO/IEC-11801, 2nd Edition Class E
IEC 61156-5:2002 Category 6
LSZH: IEC 60332-1, IEC 60754, IEC 61034

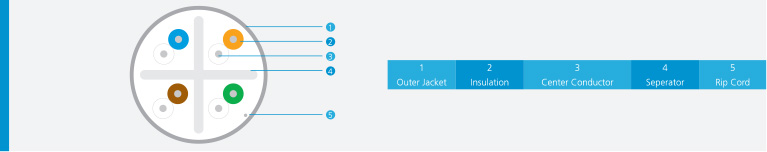

MATERIAL CONSTRUCTION & DESIGN
|
Conductor Material:
|
Bare Copper
|
|
Conductor Size:
|
0.525wmm±0.005mm (D), 24 AWG
|
|
Conductor Construction:
|
Solid
|
|
Insulation Material:
|
High Density PE
|
|
Insulation Diameter:
|
0.93±0.05mm
|
|
Conductor Unit Identification:
|
Solid/Stripe
|
|
Color Code:
|
Per TIA/EIA 568-B
|
|
Total Number of Wires:
|
8
|
|
Rip Cord:
|
Yes
|
|
Separator:
|
Yes
|
|
Overall Drain-Wire Size:
|
N/A
|
|
Overall Drain-Wire Construction:
|
N/A
|
|
Outer Jacket:
|
LS0H Halogen free flame retardant or PVC
|
|
Outer Jacket Thickness & Ex. Diameter:
|
0.54±0.05mm, 6.0±0.2mm
|
|
Outer Jacket Color:
|
Per Requirement
|
|
Marking:
|
Per Requirement
|
MECHANICAL, ELECTRICAL & TRANSMISSION CHARACTERISTICS
|
Frequency Range:
|
1 - 250 MHz
|
|
Impedance:
|
100 Ω+/-15
|
|
Coupling Attenuation:
|
40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
|
|
DC Resistance:
|
93.8 /km nom.
|
|
Max. Resistance Unbalance:
|
2.50%
|
|
Capacitance:
|
5.6nF/100m max.
|
|
Capacitance Unbalance:
|
3.3 pF/m max.
|
|
Propagation Delay Skew:
|
35 ns/100m max.
|
|
Velocity of Propagation:
|
69%
|
|
Dielectric Strength:
|
1KV/minute
|
|
Min. Insulation Resistance:
|
5 GΩ•km
|
|
Max. Tensile Strength - Short Term:
|
110N
|
|
Min. Bend Radius:
|
48 mm
|
|
Max. Operating Temperature:
|
+65 °C
|
|
Min. Operating Temperature:
|
-10 °C
|
ELECTRICAL PERFORMANCE CHARACTERISTICS
Cat. 6 Un-screened Pair Horizontal Cables*
|
Freq.
MHz
|
Attenuation
dB/100m@20°C
|
NEXT
dB
|
PSNEXT
dB
|
RL
dB
|
ELFEXT
dB
|
PSELFEXT
dB
|
|
1
|
2
|
74.3
|
72.3
|
20
|
67.8
|
64.8
|
|
4
|
3.8
|
65.3
|
63.3
|
23
|
55.8
|
52.8
|
|
10
|
6
|
59.3
|
57.3
|
25
|
47.8
|
44.8
|
|
20
|
8.5
|
54.8
|
52.8
|
25
|
41.8
|
38.8
|
|
31.25
|
10.7
|
51.9
|
49.9
|
23.6
|
37.9
|
34.9
|
|
100
|
15.4
|
47.4
|
45.4
|
21.5
|
31.9
|
28.9
|
|
150
|
19.8
|
44.3
|
42.3
|
20.1
|
27.8
|
24.8
|
|
200
|
29
|
39.8
|
37.8
|
18
|
21.8
|
18.8
|
|
250
|
32.8
|
38.3
|
36.3
|
17.3
|
19.8
|
16.8
|
*Supplied cables meet the minimum Cat. 6 transmission requirements as per IEC 61156-5 Ed. 2
ORDERING INFORMATION
|
PART NUMBER
|
DESCRIPTION
|
LENGTH (STANDARD)
|
|
120-11001104X
|
Category 6 U/UTP 4 Pair 24Awg Cable PVC With Separator
|
305 mtr
|
|
120-11002104X
|
Category 6 U/UTP 4 Pair 24Awg Cable LSZH With Separator
|
305 mtr
|
X: BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
PACKING INFORMATION
|
Cable Length (Meter)
|
Packing Mode
|
N.W (kg)
|
G.W (kg)
|
Dimension (cm)
|
|
305
|
Pulley Box
|
12.3
|
13.0
|
40.0 x 40.0 x 22.0
|
|
1000
|
Ply Reel
|
41.0
|
48.0
|
47.0 x 47.0 x 30.0
|
