Category 6 U/UTP 4 Pair Cable
 |
Norden Category 6 U/UTP cables exceed Category 6/Class E specification. It is tested to 250MHz frequency range and designed to support Gigabit 1000Base-T and 1000Base-Tx applications to full 100m. Norden Category 6 U/UTP cables are UL listed CM, CMX, CMR & CMP and standard packing will be 305m easy pull out boxes.
Extremely high pair-balance providing excellent EMC (Electro Magnetic Compatibility), minimizing radiation, maximizing noise immunity and providing high alien cross talk performance to U/UTP (Unshielded Twisted Pair) cabling systems. |
COMPLIANCE
IEEE 802.af, IEEE 802.3at for PoE applications
ANSI/TIA-568-C.2:2009 Category 6
ISO/IEC-11801, 2nd Edition Class E
IEC 61156-5:2002 Category 6
LSZH: IEC 60332-1, IEC 60754, IEC 61034

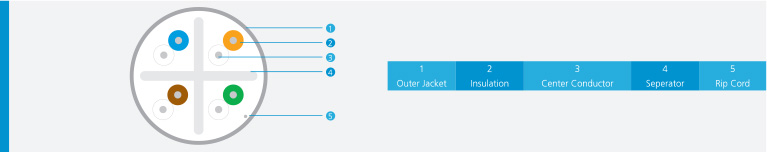

MATERIAL CONSTRUCTION & DESIGN
|
Conductor Material:
|
Bare Copper
|
|
Conductor Size:
|
0.57mm±0.005mm (D), 23 AWG
|
|
Conductor Construction:
|
Solid
|
|
Insulation Material:
|
High Density PE
|
|
Insulation Diameter:
|
1.02±0.03mm
|
|
Conductor Unit Identifcation:
|
Solid/Stripe
|
|
Colour Code:
|
Per TIA/EIA 568-B
|
|
Total Number of Wires:
|
8
|
|
Rip Cord:
|
Yes
|
|
Overall Drain-Wire Material:
|
N/A
|
|
Overall Drain-Wire Size:
|
N/A
|
|
Overall Drain-Wire Construction:
|
N/A
|
|
Outer Jacket:
|
LS0H Halogen free fame retardant or PVC
|
|
Outer Jacket Thickness & Ex. Diameter:
|
0.55±0.05mm, 6.3±0.4mm
|
|
Outer Jacket Colour:
|
Per Requirement
|
|
Marking:
|
Per Requirement
|
MECHANICAL, ELECTRICAL & TRANSMISSION CHARACTERISTICS
|
Frequency Range:
|
1 - 250 MHz
|
|
Impedance:
|
100 Ω+/-15
|
|
Coupling Attenuation:
|
40 dB min @ 30-100 MHz 40-20Log(f/100) @100-300 MHz
|
|
DC Resistance:
|
73 Ω/km nom.
|
|
Max. Resistance Unbalance:
|
4%
|
|
Capacitance:
|
5.6nF/100m max.
|
|
Capacitance Unbalance:
|
3.3 pF/m max.
|
|
Propagation Delay Skew:
|
35 ns/100m max.
|
|
Velocity of Propagation:
|
69%
|
|
Dielectric Strength:
|
1KV/minute
|
|
Min. Insulation Resistance:
|
5 GΩ•km
|
|
Max. Tensile Strength - Short Term:
|
110N
|
|
Min. Bend Radius:
|
53.6 mm
|
|
Max. Operating Temperature:
|
+65 °C
|
|
Min. Operating Temperature:
|
-10 °C
|
ELECTRICAL PERFORMANCE CHARACTERISTICS
Cat. 6 Un-screened Pair Horizontal Cables*
|
Freq.
MHz
|
Attenuation
dB/100m@20°C
|
NEXT
dB
|
PSNEXT
dB
|
RL
dB
|
ELFEXT
dB
|
PSELFEXT
dB
|
|
1
|
1.9
|
87.6
|
82.6
|
28
|
85
|
80
|
|
4
|
3.5
|
79.2
|
74.2
|
30
|
73
|
68
|
|
10
|
5.6
|
73.3
|
68.3
|
29
|
65
|
60.2
|
|
20
|
8.4
|
69.1
|
63.8
|
29
|
59
|
54
|
|
31.25
|
10
|
66
|
61.1
|
28.6
|
55.1
|
50.3
|
|
100
|
18.9
|
58
|
53
|
25.1
|
45
|
40.1
|
|
150
|
24
|
55.2
|
50.7
|
23.8
|
41.8
|
36.9
|
|
200
|
26.1
|
53
|
48
|
22.8
|
39
|
33.8
|
|
250
|
30
|
52.6
|
47.6
|
22
|
37.8
|
32.8
|
*Supplied cables meet the minimum Cat. 6 transmission requirements as per IEC 61156-5 Ed. 2
ORDERING INFORMATION
|
PART NUMBER
|
DESCRIPTION
|
LENGTH (STANDARD)
|
|
113-11001104X
|
Category 6 U/UTP 4 Pair Cable PVC
|
305 mtr
|
|
113-11002104X
|
Category 6 U/UTP 4 Pair Cable LSZH
|
305 mtr
|
|
113-15001104X
|
Category 6 U/UTP 4 Pair Cable Pleanum
|
305 mtr
|
X:BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
PACKING INFORMATION
|
Cable Length (Metre)
|
Packing Mode
|
N.W (kg)
|
G.W (kg)
|
Dimension (cm)
|
|
305
|
Pulley Box
|
12.3
|
13
|
40.0 x 40.0 x 22.0
|
|
1000
|
Ply Reel
|
41
|
48
|
47.0 x 47.0 x 30.0
|
