Category 6a S/FTP 4 Pair Cable
 |
Norden Category 6A S/FTP cables exceed Category 6A/Class EA specification. It is tested to 500MHz frequency range and designed to support 10 Gigabyte applications to full 100m.
Data integrity is one of the most essential network requirements for many corporations, especially those located in environments that are prone to noise and electromagnetic interference such as industrial facilities and airports, as well as those running critical systems such as military installations and hospitals. S/FTP (Foil Twisted Pair - Shielded) cabling systems are installed to protect data from potentially corrupting electromagnetic interference (EMI) and improved Alien Cross talk performance.
|
COMPLIANCE
IEEE 802.3an:2006 (10GBASE-T)
ANSI/TIA-568-C.2:2009 Category 6A
ISO/IEC-11801, 2nd Edition Class EA
IEC 61156-5:2002 Category 6A
LSZH: IEC 60332-1, IEC 60754, IEC 61034

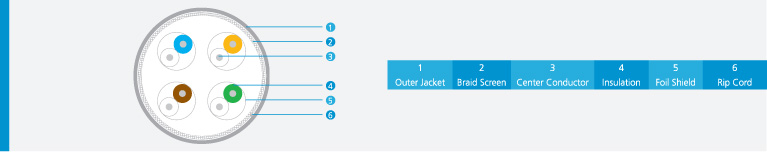

MATERIAL CONSTRUCTION & DESIGN
|
Conductor Material:
|
Bare Copper
|
|
Conductor Size:
|
0.567mm norm., 23 AWG
|
|
Conductor Construction:
|
Solid
|
|
Insulation Material:
|
SFS PE
|
|
Insulation O.D.:
|
1.35 mm nom.
|
|
Conductor Unit Identifcation:
|
Solid/Stripe
|
|
Colour Code:
|
Per TIA/EIA 568-B
|
|
Ind. Shield Material:
|
Aluminium/Polyester Foil
|
|
Ind. Shield Design:
|
100% Coverage
|
|
Conductor Unit Lay-Up:
|
Pairs
|
|
Overall Shield Design:
|
Braid
|
|
Overall Shield Material:
|
Tinned-Copper
|
|
Braid Coverage:
|
More than 45%.
|
|
Drain-Wire Material:
|
N/A
|
|
Total Number of Wires:
|
8
|
|
Outer Jacket:
|
LS0H Halogen free fame retardant or PVC or Plenum PVC
|
|
Outer Jacket Thickness & Ex. Diameter:
|
0.55±0.05mm, 7.9±0.5mm
|
|
Outer Jacket Colour:
|
Per Requirement
|
|
Marking:
|
Per Requirement
|
ELECTRICAL, MECHANICAL & TRANSMISSION CHARACTERISTICS
|
Frequency Range:
|
1 - 500 MHz
|
|
Impedance:
|
100Ω
|
|
Coupling Attenuation:
|
85 dB min @ 30-100 MHz 85-20Log(f/100) @100-500 MHz
|
|
Max. DC Resistance :
|
73 Ω/km@20°C
|
|
Max. Resistance Unbalance:
|
2%
|
|
Capacitance Unbalance:
|
1.2 pF/m max.
|
|
Velocity of Propagation:
|
78 % nom.
|
|
Propagation Delay Skew:
|
25 ns/100m max.
|
|
Dielectric Strength:
|
1.5K V/minute
|
|
Dielectric Strength to Shield:
|
1.5K V/minute
|
|
Min. Insulation Resistance:
|
5 GΩ•km
|
|
Max. Tensile Strength - Short Term:
|
130 N
|
|
Min. Bend Radius:
|
60 mm
|
|
Max. Operating Temperature:
|
+65 °C
|
|
Min. Operating Temperature:
|
-20 °C
|
ELECTRICAL PERFORMANCE CHARACTERISTICS
Cat. 6A Screened-pair Horizontal Cables*
|
Freq.
MHz
|
Attenuation
dB/100m@20°C
|
NEXT
dB
|
PS NEXT
dB
|
RL
dB
|
ACR
dB
|
ELFEXT
dB
|
PSELFEXT
dB
|
|
1
|
1.8
|
87.2
|
84.2
|
23
|
85.4
|
84
|
81
|
|
4
|
3.4
|
84
|
81
|
27
|
80.6
|
81
|
78
|
|
10
|
5.4
|
80.2
|
77.2
|
26
|
74.8
|
76
|
73
|
|
20
|
7.6
|
77
|
73.8
|
26
|
69.4
|
70
|
67
|
|
31.25
|
9.7
|
75.6
|
72.6
|
26
|
65.9
|
65
|
63
|
|
100
|
18
|
72
|
69
|
26
|
54
|
55
|
52.8
|
|
150
|
23.6
|
69
|
66
|
26
|
45.4
|
53.5
|
51.5
|
|
200
|
25
|
66.9
|
63.9
|
26
|
41.9
|
49
|
46
|
|
250
|
28.1
|
64.5
|
61.5
|
25
|
36.4
|
44
|
41
|
|
300
|
30.9
|
62
|
58.9
|
24
|
31.3
|
39.6
|
36.6
|
|
400
|
38.3
|
59
|
56.1
|
23
|
20.7
|
37
|
34
|
|
500
|
42.2
|
57
|
54.2
|
22
|
14.8
|
35
|
33
|
*Supplied cables meet the minimum Cat. 6A transmission requirements as per IEC 61156-5 Ed. 2
ORDERING INFORMATION
|
PART NUMBER
|
DESCRIPTION
|
LENGTH (STANDARD)
|
|
114-10001504X
|
Category 6a S/FTP 4 Pair Cable PVC
|
305 mtr
|
|
114-10002504X
|
Category 6a S/FTP 4 Pair Cable LSZH
|
305 mtr
|
X: BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
PACKING INFORMATION
|
Cable Length
(Meter)
|
Packing Mode
|
N.W
(kg)
|
G.W
(kg)
|
Dimension
(cm)
|
|
305
|
Ply Reel
|
20.6
|
23
|
42.0 x 42.0 x 26.0
|
|
1000
|
Ply Reel
|
67.3
|
74
|
47.0 x 47.0 x 42.0
|
