Category 6a U/UTP 4 Pair Cable
 |
Norden Category 6A U/UTP cables exceed Category 6A/Class EA specification. It is tested to 500MHz frequency range and designed to support 10 Gigabyte applications to full 100m.
Extremely high pair-balance providing excellent EMC (Electro Magnetic compatibility), minimizing radiation, maximizing noise immunity and providing high alien cross talk performance to U/UTP (Unshielded Twisted Pair) cabling systems.
|
COMPLIANCE
IEEE 802.3an :2006 (10GBASE-T)
ANSI/TIA-568-C.2:2009 Category 6A
ISO/IEC-11801, 2nd Edition Class EA
IEC 61156-5:2002 Category 6A
LSZH: IEC 60332-1, IEC 60754, IEC 61034

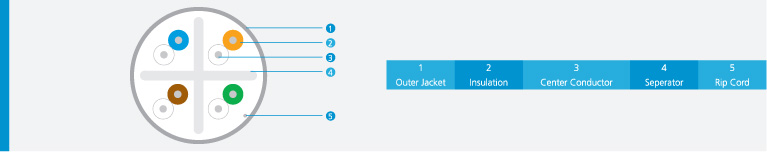

MATERIAL CONSTRUCTION & DESIGN
|
Bare Copper
|
Conductor Material:
|
|
0.57mm (D) norm, 23 AWG
|
Conductor Size:
|
|
Solid
|
Conductor Construction:
|
|
HDPE
|
Insulation Material:
|
|
1.03 mm nom.
|
Insulation O.D.:
|
|
Solid/Stripe
|
Conductor Unit Identifcation:
|
|
Per TIA/EIA 568-B
|
Colour Code:
|
|
Pairs
|
Conductor Unit Lay-Up:
|
|
8
|
Total Number of Wires:
|
|
LS0H Halogen free fame retardant or PVC
|
Outer Jacket Material:
|
|
0.65±0.05mm, 6.9±0.4mm
|
Outer jacket thickness & Ex. Diameter:
|
|
Per requirement
|
Outer Jacket Colour:
|
|
Yes
|
Rip Cord:
|
|
N/A
|
Overall Drain-Wire Material:
|
|
N/A
|
Overall Drain-Wire Construction:
|
MECHANICAL, ELECTRICAL & TRANSMISSION CHARACTERISTICS
|
110 N/mm2max.
|
Pulling Force:
|
|
25ns/100m max.
|
Delay Skew:
|
|
85 db min @ 30-100 MHz 85-20log(f/100) @100-500 MHz
|
Coupling Attenuation:
|
|
100±6 Ω @ 1-500 MHz
|
Characteristic Impedance:
|
|
72Ω/Km max.
|
DC Resistance:
|
|
2% max.
|
Resistance Unbalance:
|
|
45 pF/m nom.
|
Capacitance:
|
|
1500 pF/Km max.
|
Cap. Unbalance (Wire to Ground):
|
|
1.5KV/ minute min.
|
Dielectric Strength:
|
|
67%
|
Velocity of Propagation (NVP):
|
|
5000 MΩ•Km min.
|
Insulation Resistance:
|
|
N/A
|
Transfer Impedance:
|
|
8 x OD mm
|
Short Term Bend Radius :
|
|
4 x OD mm
|
Long Term Bend Radius :
|
|
-20 to +60˚C
|
Temperature Operating Range :
|
|
0 to +50˚C
|
Installation Temperature Range :
|
ELECTRICAL PERFORMANCE CHARACTERISTICS
Cat. 6A Un-screened Pair Horizontal Cables*
|
PSELFEXT
dB
|
ELFEXT
dB
|
ACR
dB
|
RL
dB
|
PS NEXT
dB
|
NEXT
dB
|
Attenuation
dB/100m@20°C
|
Freq.
MHz
|
|
80
|
84
|
84.6
|
26
|
83.3
|
86.3
|
1.7
|
1
|
|
78
|
81
|
75.6
|
29
|
83
|
85
|
3.4
|
4
|
|
73
|
76
|
71.9
|
31
|
74.3
|
77.3
|
5.4
|
10
|
|
67
|
70
|
62.4
|
30
|
67
|
70
|
7.6
|
20
|
|
63
|
65
|
58.3
|
29.8
|
65
|
68
|
9.7
|
31.25
|
|
52.8
|
55
|
47.3
|
27.1
|
62.3
|
65.3
|
18
|
100
|
|
51.5
|
53.5
|
38.4
|
26
|
59.8
|
62
|
23.6
|
150
|
|
46
|
49
|
31.6
|
25
|
57.2
|
59
|
27.4
|
200
|
|
41
|
44
|
26.6
|
25.2
|
54.6
|
57.6
|
31
|
250
|
|
36.6
|
39.6
|
20.3
|
24
|
52
|
55
|
34.2
|
300
|
|
34
|
37
|
13
|
21.8
|
51.8
|
53
|
40
|
400
|
|
33
|
35
|
9.8
|
21.8
|
50
|
52
|
42.2
|
500
|
*Supplied cables meet the minimum Cat. 6A transmission requirements as per IEC 61156-5 Ed. 2
ORDERING INFORMATION
|
LENGTH (STANDARD)
|
DESCRIPTION
|
PART NUMBER
|
|
305 mtr
|
Category 6a U/UTP 4 Pair Cable PVC
|
114-10001104X
|
|
305 mtr
|
Category 6a U/UTP 4 Pair Cable LSZH
|
114-10002104X
|
X:BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
PACKING INFORMATION
|
Dimension
(cm)
|
G.W
(kg)
|
N.W
(kg)
|
Packing Mode
|
Cable Length
(Metre)
|
|
34.0 x 34.0 x 34.0
|
16.8
|
15
|
Ply Reel
|
305
|
|
56.0 x 56.0 x 25.0
|
55.6
|
49.3
|
Ply Reel
|
1000
|
