Category 7 S/FTP 4 Pair Cable
 |
Norden Category 7 S/FTP cables exceed Category 7/ Class F specification maximizing the user’s return on investment, by extending the life of the system. It is tested to 600MHz frequency range and designed to support 10 Gigabyte applications.
Data integrity is one of the most essential network requirements for many corporations, especially those located in environments that are prone to noise and electromagnetic interference such as industrial facilities and airports, as well as those running critical systems such as military installations and hospitals. S/FTP (Foil Twisted Pair - Shielded) cabling systems are installed to protect data from potentially corrupting electromagnetic interference (EMI) and improved Alien Cross talk performance.
|
COMPLIANCE
ISO/IEC-11801 2nd Edition Class F
IEC 61156-5:2002 Category 7
LSZH: IEC 60332-1, IEC 60754, IEC 61034

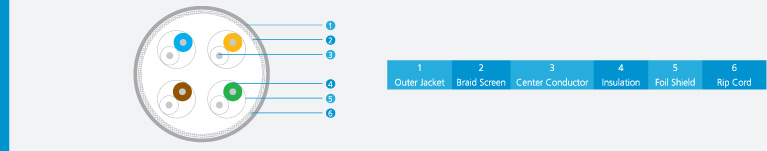

MATERIAL CONSTRUCTION & DESIGN
|
Bare Copper
|
Conductor Material:
|
|
23 AWG
|
Conductor Size:
|
|
0.58±0.005mm
|
Normal Conductor Diameter:
|
|
Solid
|
Conductor Construction:
|
|
SFS PE
|
Insulation Material:
|
|
1.35 mm nom.
|
Insulation O.D.:
|
|
Solid/Stripe
|
Conductor Unit Identifcation:
|
|
Per TIA/EIA 568-B
|
Colour code:
|
|
Aluminium/Polyester Foil
|
Ind. Shield Material:
|
|
100% Coverage
|
Ind. Shield Design:
|
|
Pairs
|
Conductor Unit Lay-Up:
|
|
Tinned Copper, 0.10mm
|
Overall Braid Shield Material:
|
|
More than 40%
|
Braid Coverage:
|
|
N/A
|
Drain-Wire Material:
|
|
LS0H Halogen free fame retardant or PVC
|
Outer Jacket Material:
|
|
0.55±0.05mm, 7.9±0.5mm
|
Outer Jacket Thickness & Ex. Diameter:
|
|
Yes
|
Rip Cord:
|
|
8
|
Total Number of Wires:
|
|
Per Requirement
|
Outer Jacket Colour:
|
|
Per Requirement
|
Marking:
|
ELECTRICAL, MECHANICAL & TRANSMISSION CHARACTERISTICS
|
100 Ω
|
Impedance:
|
|
73 Ω/km@20°C
|
Max. DC Resistance :
|
|
2%
|
Max. Resistance Unbalance:
|
|
1.2 pF/m max.
|
Capacitance Unbalance:
|
|
78 % nom.
|
Velocity of Propagation:
|
|
25 ns/100m max.
|
Propagation Delay Skew:
|
|
1.5kV/minute
|
Dielectric Strength:
|
|
1.5kV/minute
|
Dielectric Strength to Shield:
|
|
5 GΩ•km
|
Min. Insulation Resistance :
|
|
85 db min @ 30-100 MHz 85-20log(f/100) @100-600 MHz
|
Coupling Attenuation:
|
|
130 N
|
Max. Tensile Strength - Short Term:
|
|
60 mm
|
Min. Bend Radius:
|
|
+65 °C
|
Max. Operating Temperature:
|
|
-35 °C
|
Min. Operating Temperature:
|
|
130 N
|
Max. Tensile Strength - Short Term:
|
ELECTRICAL PERFORMANCE CHARACTERISTICS
Cat7. Screened Horiontal Cables*
|
PSELFEXT
db
|
ELFEXT
db
|
ACR
db
|
RL
db
|
PS NEXT
db
|
NEXT
db
|
Attenuation
dB/100m@20°C
|
Freq.
MHz
|
|
76
|
79
|
78
|
20
|
77
|
80
|
2
|
1
|
|
75.8
|
78.8
|
76.3
|
23
|
77
|
80
|
3.7
|
4
|
|
73.4
|
76.4
|
74.3
|
25
|
77
|
80
|
5.7
|
10
|
|
70.3
|
73.3
|
72.6
|
25
|
77
|
80
|
7.4
|
20
|
|
67.1
|
70.1
|
68.8
|
23.8
|
75.8
|
78.8
|
10
|
31.25
|
|
62
|
65
|
53.6
|
20.1
|
69.4
|
72.4
|
18.8
|
100
|
|
60.7
|
63.7
|
47.1
|
18.8
|
66.6
|
69.6
|
22.5
|
150
|
|
59.2
|
62.2
|
41.4
|
18
|
64.9
|
67.9
|
26.5
|
200
|
|
57.8
|
60.8
|
37.5
|
17.3
|
63.5
|
66.5
|
29
|
250
|
|
55.6
|
58.6
|
31.7
|
16.4
|
62.3
|
65.3
|
33.6
|
300
|
|
52.9
|
55.9
|
25.4
|
16.4
|
61
|
64
|
38.6
|
400
|
|
51.4
|
53.4
|
17.4
|
16.4
|
59.3
|
62.3
|
44.9
|
500
|
|
47.1
|
50.1
|
12.1
|
16.4
|
57.8
|
60.8
|
48.7
|
600
|
*Supplied cables meet the minimum Cat. 7 transmission requirements as per IEC 61156-5 Ed. 2
ORDERING INFORMATION
|
LENGTH (STANDARD)
|
DESCRIPTION
|
PART NUMBER
|
|
305 mtr
|
Category 7 S/FTP 4 Pair Cable LSZH
|
115-10002504X
|
X: BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
PACKING INFORMATION
|
Dimension
(cm)
|
G.W
(kg)
|
N.W
(kg)
|
Packing Mode
|
Cable Length
(Meter)
|
|
42.0 x 42.0 x 26.0
|
23.5
|
21.5
|
Ply Reel
|
305
|
|
47.0 x 47.0 x 42.0
|
75
|
68.5
|
Ply Reel
|
1000
|
