Category 7A S/FTP 4 Pair Cable
 |
Norden Category 7A S/FTP cables exceed Category 7A/Class FA specification, maximizing the user’s return on investment, by extending the life of the system. It is tested to 1000MHz frequency range and designed to support Broadband CATV and other 10 Gigabyte applications.
Data integrity is one of the most essential network requirements for many corporations, especially those located in environments that are prone to noise and electromagnetic interference such as industrial facilities and airports, as well as those running critical systems such as military installations and hospitals. S/FTP (Foil Twisted Pair - Shielded) cabling systems are installed to protect data from potentially corrupting electromagnetic interference (EMI) and improved Alien Cross talk performance.
|
COMPLIANCE
ISO/IEC-11801(2000) 2nd Edition, Amendment 1 Class FA
IEC 61156-5 and EN 50173-1:2002 Category 7A
LSZH: IEC 60332-1, IEC 60754, IEC 61034

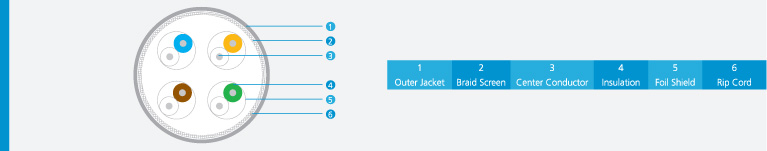

MATERIAL CONSTRUCTION & DESIGN
|
Conductor Material:
|
Bare Copper
|
|
Conductor Size:
|
23 AWG
|
|
Normal Conductor Diameter:
|
0.57±0.005mm
|
|
Conductor Construction:
|
Solid
|
|
Insulation Material:
|
SFS PE
|
|
Insulation O.D.:
|
1.35 mm nom.
|
|
Conductor Unit Identification:
|
Solid/Stripe
|
|
Color Code:
|
Per TIA/EIA 568-B
|
|
Ind. Shield Material:
|
Aluminum/Polyester Foil
|
|
Ind. Shield Design:
|
Aluminum Face Outwards
|
|
Conductor Unit Lay-Up:
|
Pairs
|
|
Drain Wire:
|
N/A
|
|
Overall Shield Design:
|
Braid
|
|
Overall Shield Material:
|
Tinned-Copper, 0.10mm
|
|
Braid Coverage:
|
More than 40 %.
|
|
Total Number of Wires:
|
8
|
|
Rip Cord:
|
Yes
|
|
Outer Jacket Material:
|
LSZH Halogen free flame retardant or PVC
|
|
Outer Jacket Thickness & Ex. Diameter:
|
0.55±0.05mm, 7.9±0.5mm
|
|
Outer Jacket Color:
|
Per Requirement
|
|
Marking:
|
Per Requirement
|
ELECTRICAL, MECHANICAL & TRANSMISSION CHARACTERISTICS
|
Frequency Range:
|
1 - 1000 MHz
|
|
Impedance:
|
100 Ω
|
|
Max. DC Resistance :
|
73 Ω/km@20°C
|
|
Max. Resistance Unbalance:
|
2 %
|
|
Capacitance:
|
44 pF/m
|
|
Capacitance Unbalance:
|
1.2 pF/m max.
|
|
Velocity of Propagation:
|
78 % nom.
|
|
Propagation Delay Skew:
|
25 ns/100m max.
|
|
Dielectric Strength:
|
1.5kV/minute
|
|
Dielectric Strength to Shield:
|
1.5kV/minute
|
|
Min. Insulation Resistance :
|
5 GΩ•km
|
|
Coupling Attenuation:
|
85 dB min @ 30-100 MHz 85-20log(f/100) @100-1000 MHz
|
|
Max. Tensile Strength - Short Term:
|
130 N
|
|
Min. Bend Radius:
|
60 mm
|
|
Max. Operating Temperature:
|
+80 °C
|
|
Min. Operating Temperature:
|
-20 °C
|
ELECTRICAL PERFORMANCE CHARACTERISTICS
Cat.7A Horizontal Cables*
|
Freq.
MHz
|
Attenuation
dB/100m@20°C
|
NEXT
dB
|
PS NEXT
dB
|
RL
dB
|
ACR
dB
|
ELFEXT
dB
|
PSELFEXT
dB
|
|
1
|
2
|
100
|
97
|
27
|
98
|
91
|
88
|
|
4
|
3.4
|
99.8
|
96.8
|
30
|
96.4
|
91
|
88
|
|
10
|
5.3
|
99.3
|
96.3
|
30
|
94
|
90.4
|
87.4
|
|
20
|
7.3
|
99.1
|
95
|
30
|
91.8
|
88.6
|
85.6
|
|
31.25
|
9.1
|
99
|
94.5
|
29.8
|
89.9
|
87.3
|
84.3
|
|
100
|
17.1
|
98.7
|
93.6
|
26
|
81.5
|
84.4
|
81.5
|
|
150
|
21
|
96.5
|
93
|
26
|
75.5
|
82.5
|
79.3
|
|
200
|
25
|
95.2
|
92.2
|
26
|
70.2
|
80
|
77
|
|
250
|
28.7
|
94.8
|
92.8
|
25.6
|
66.1
|
77
|
74
|
|
300
|
31
|
93.3
|
91.3
|
25.6
|
62.3
|
74.8
|
71.8
|
|
400
|
33.4
|
91.9
|
90
|
25
|
58.5
|
69
|
67.2
|
|
500
|
38
|
89.9
|
88.9
|
25
|
51.9
|
66.6
|
64.6
|
|
600
|
43.1
|
86.1
|
86
|
25
|
43
|
62
|
60
|
|
1000
|
57.5
|
82
|
81
|
23
|
24.5
|
48.1
|
45.1
|
*Supplied cables meet the minimum Cat. 7A transmission requirements as per IEC 61156-5 Ed. 2
ORDERING INFORMATION
|
PART NUMBER
|
DESCRIPTION
|
LENGTH (STANDARD)
|
|
116-10002504X
|
Category 7a S/FTP 4 Pair Cable LSZH
|
305 mtr
|
X:BK(Black), BL(Blue), GN(Green), GY(Gray), RD(Red), WH(White), YL(Yellow)
PACKING INFORMATION
|
Cable Length
(Meter)
|
Packing Mode
|
N.W
(kg)
|
G.W
(kg)
|
Dimension
(cm)
|
|
305
|
Ply Reel
|
21.5
|
23.5
|
42.0 x 42.0 x 26.0
|
|
1000
|
Ply Reel
|
68
|
75
|
47.0 x 47.0 x 42.0
|
